Main page » Housing solutions » Stainless steel housing V4A INOX 316L » V4A stainless steel enclosure 800x800x300mm HBT 1-door IP66 AISI 316L

Preview: V4A stainless steel enclosure 800x800x300mm HBT 1-door IP66 AISI 316L

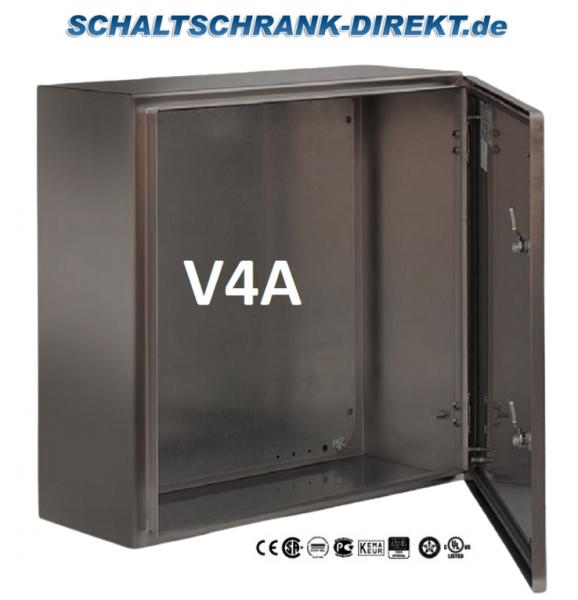

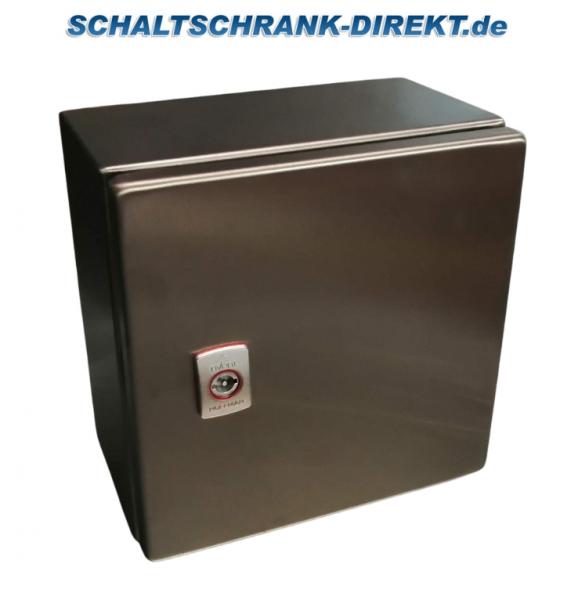

V4A stainless steel enclosure 800x800x300mm HBT 1-door IP66 AISI 316L

Mobile Preview: V4A stainless steel enclosure 800x800x300mm HBT 1-door IP66 AISI 316L

V4A stainless steel enclosure 800x800x300mm HBT 1-door IP66 AISI 316L

Product No.:: EWG-0808030E-V4A
Shipping time:: approx. 5 days ex works* (abroad may vary)
Stock:: 1 pieces

Only for internal use!

Add to wish list

Ask about product

Description

Lock with 3mm double-bit lock with 90° movement range and anti-vibration mechanism.
Pre-ground AISI 316 stainless steel
Wall thickness: Housing: 1.5 mm, door: 1.5 mm
Surface: 240 pre-ground stainless steel (average: 0.5 micron)
Certificates: CE, CSA, DNV-GL, GOST, Kema Keur, Lloyds shipping, RS, cULus_listed.

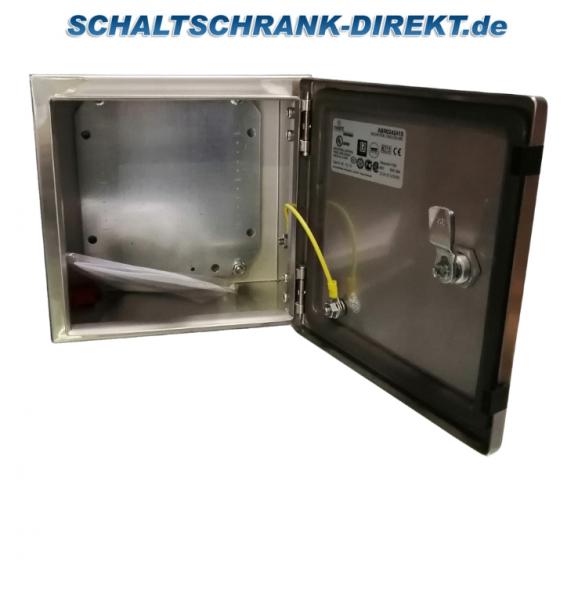

Scope of delivery: Mounting plate incl. mounting material and provided for earthing. Packed in reusable cardboard box.
Stainless steel lock and other versions are available as accessories.
Cable entry: without flange openings to optimize the tightness of the wall-mounted enclosure.
Stainless steel wall-mounted enclosure, single door

IP 66 TYPE 4X, 12, 13 IK 10

Subject to manufacturer-related modifications.

Product Features	Wert
Height (H)	800mm
Width (W)	800mm
Depth (D)	300mm
Seal Type	Silicone
Material	316 Stainless Steel
Max. Installation Depth	282mm
Surface	Brushed
Case thickness	1.5mm
Door thickness	2mm
Locking force	2
Weight	40.1kg
UPC	783510450618
EAN	8713574121041
Standard packaging quantity	1
Package Quantity	on
