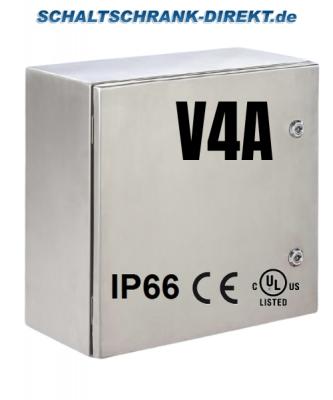

V4A switch cabinet IP66 316L with mounting plate
IP66 Single door standard stainless steel wall-mounted enclosure for the installation of electrical or electronic equipment and systems
AISI 316L satin finish with Scotch 320 with 2 mm mounting plate made of galvanized sheet steel
The enclosure has 4 fixing holes on the back and eliminates the need to machine the enclosure for wall mounting,
as well as a drainage opening for ventilation to prevent or drain off moisture.
The tighter an enclosure, the greater the likelihood of condensation in the enclosure.
Also available in ATEX version for installation in potentially explosive atmospheres.
- Protection class: Single-door enclosures: IP66 / NEMA 1, 4, 4x, 12.
- Impact resistance: Opaque door: IK10 / transparent door: IK09.
- Ambient temperature range: -25 °C / +60 °C.
- Maximum operating voltage: 1000 V AC / 1500 V DC.
Basic enclosure:
- Made of stainless steel 304L or 316L from a single cross-shaped part.
- Sheet thickness: 1.2 mm for enclosures from 300x200 to 600x500 mm / 1.5 mm for enclosures from 600x600 to 1200x1000 mm.
- Wall mounting via four pre-punched holes with Ø9 mm.
Bracket for hanging on the wall to create a gap of 11 mm (supplied as an accessory).
- M8x25 bolts (4 pieces) inside the housing for fastening panels, adjustment elements or frames.
- M6x15 earthing studs on the enclosure wall for earthing the enclosure and door using cables.
- With channel-shaped edge to protect against water ingress.
