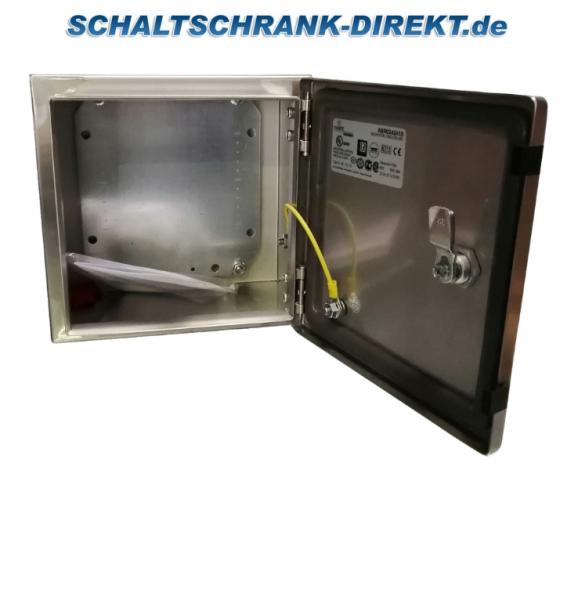

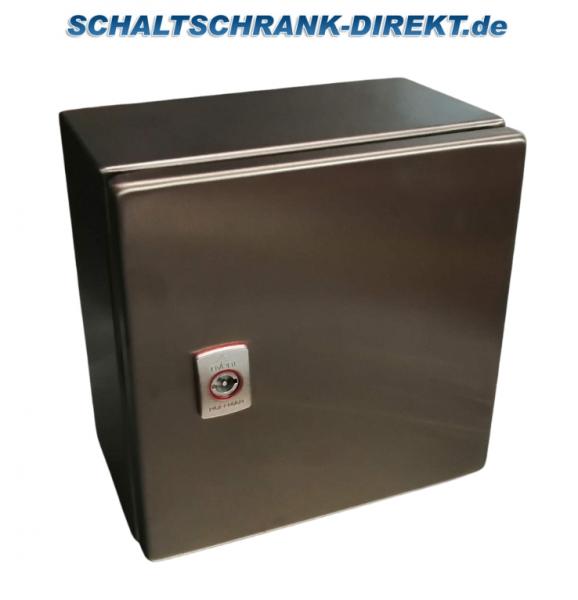

V4A stainless steel enclosure 1400x800x400mm HBT 1-door IP66 AISI 316L

Mobile Preview: V4A stainless steel enclosure 1400x800x400mm HBT 1-door IP66 AISI 316L

V4A stainless steel enclosure 1400x800x400mm HBT 1-door IP66 AISI 316L

Product No.:: EWG-1408040E-V4A
Shipping time:: approx. 5-10 wdays ex works* (abroad may vary)
Stock:: pieces

Only for internal use!

Add to wish list

Ask about product

Description

Lock with 3mm double-bit lock with 90° movement range and anti-vibration mechanism.
Pre-ground AISI 316 stainless steel
Wall thickness: Housing: 1.5 mm, door: 1.5 mm
Surface: 240 pre-ground stainless steel (average: 0.5 micron)
Certificates: CE, CSA, DNV-GL, GOST, Kema Keur, Lloyds shipping, RS, cULus_listed.
Scope of delivery: Mounting plate incl. mounting material and provided for earthing. Packed in reusable cardboard box.
Stainless steel lock and other versions are available as accessories.
Cable entry: without flange openings to optimize the tightness of the wall-mounted enclosure.
Stainless steel wall-mounted enclosure, single door

IP 66 TYPE 4X, 12, 13 IK 10

Subject to manufacturer-related modifications.

Produktmerkmale	Wert
Höhe (H)	1400mm
Breite (W)	800mm
Tiefe (D)	400mm
Typ Dichtung	Silikon
Material	Edelstahl 316
Max. Montagetiefe	382mm
Oberfläche	Gebürstet
Gehäusestärke	1.5mm
Türstärke	2mm
Verriegelungsmenge	3
Gewicht	73kg
UPC	783510450816
EAN	8713574121720
Standardverpackungsmenge	1
Verpackungsmenge	1
