Unit Slotted wiring duct with cover of PVC

Slotted wiring duct with cover of PVC / Verdrahtungskanal inkl. Deckel aus PVC

Farbe Grau RAL7030 / Colour Grey RAL7030
Farbe Blau RAL5012 / Colour Blue RAL5012

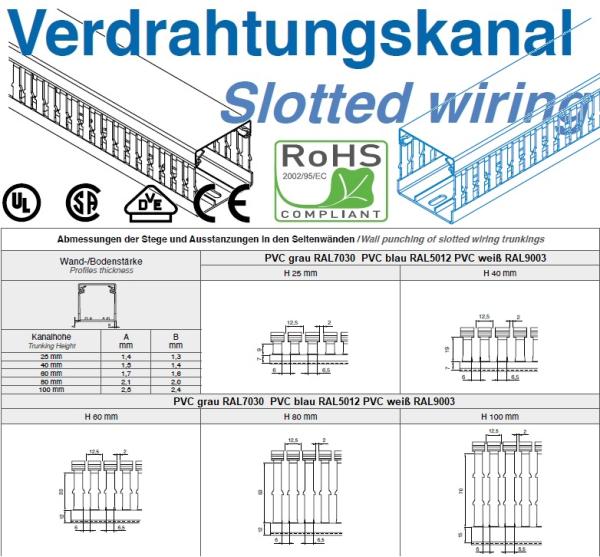

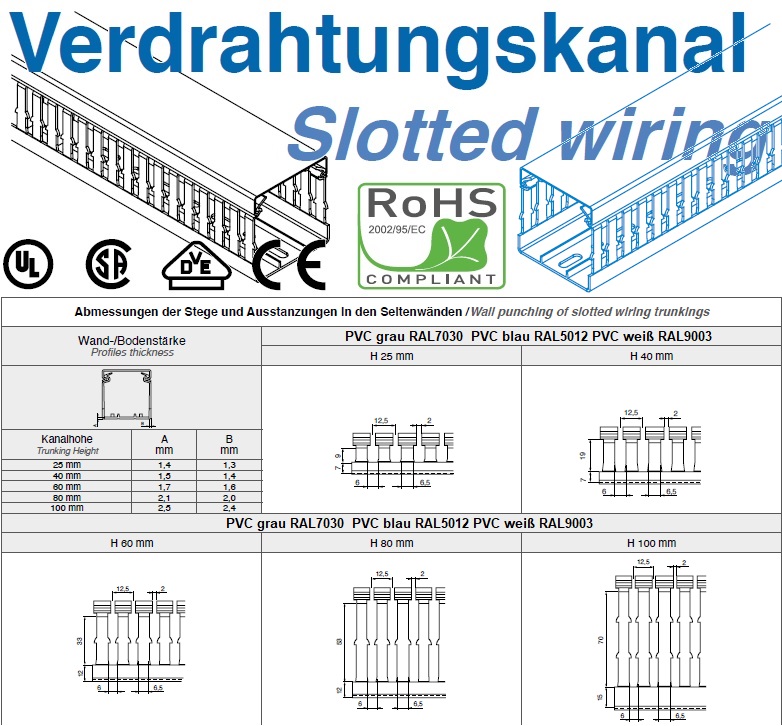

Step 12,5 mm / Step 12,5 mm
Schlitzbreite 6 mm / Slot 6 mm
Stegbreite 6,5 mm / Segment 6,5 mm

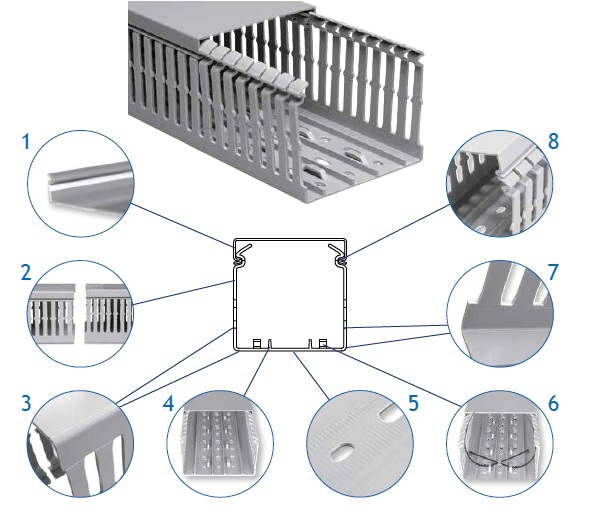

8x installation-friendly features of the series
1 Non-slip lid thanks to internal rubber lip
2 Wire retention lugs
3 Predetermined breaking point in the base
4 Reinforcing ribs in the base
5 Milling from below for better adhesion during bonding
6 Fastening eyelet for securing cable ties
7 Predetermined breaking point at the bridge attachment
8 Optimal lid fit

• Trunking of PVC (also available in halogen-free PC-ABS)
• Trunking standard length 2 meters
• Flammability classification according to UL94: V0
• Mechanical protection IK 08 (6J)
Use Features
• Wiring slotted trunkings for panel board
Norms Reference
• The system complied to CEI EN 50085-2-3
• The system complied to RoHS 2002/95/CE instruction
Marks and certifications
• IMQ Mark reference n° CA02.02387 (V5K)
• CSA Mark reference n° 102739 (V5K): n° 250704 (V6K-V6H)
• VDE Mark reference n° 40003132 (V5K): n° 40026400 (V6K-V6B)
n° 40026398 (V6H)
• UL Mark reference n° ZODZ2.E197662
• CE Marking

Available sizes and colors:
Wiring duct 25x25 HxW gray or blue
Wiring duct 25x40 HxW gray or blue
Wiring duct 25x80 HxW gray
Wiring duct 40x25 HxW gray or blue
Wiring duct 40x30 HxW gray
Wiring duct 40x40 HxW gray or blue
Wiring duct 40x60 HxW gray or blue
Wiring duct 40x80 HxW gray
Wiring duct 60x25 HxW gray or blue
Wiring duct 60x30 HxW gray
Wiring duct 60x40 HxW gray or blue
Wiring duct 60x60 HxW gray or blue
Wiring duct 60x80 HxW gray or blue
Wiring duct 60x100 HxW gray or blue
Wiring duct 60x120 HxW gray
Wiring duct 80x25 HxW gray or blue
Wiring duct 80x30 HxW gray
Wiring duct 80x40 HxW gray or blue
Wiring duct 80x60 HxW gray or blue
Wiring duct 80x80 HxW gray or blue
Wiring duct 80x100 HxW gray or blue
Wiring duct 80x120 HxW gray or blue
Wiring duct 100x30 HxW gray
Wiring duct 100x40 HxW gray
Wiring duct 100x60 HxW gray or blue
Wiring duct 100x80 HxW gray or blue
Wiring duct 100x100 HxW gray or blue
