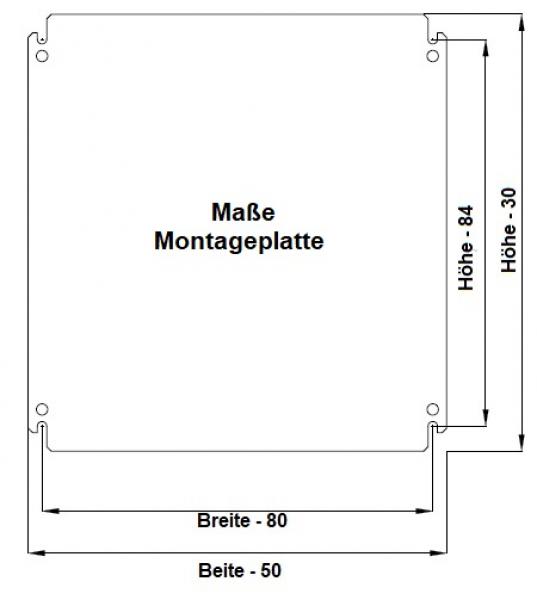

IDE GNT505020 control cabinet 500x500x200 mm with viewing door HBT IP66 including galvanized metal mounting plate and grounding strap
IP66 sheet steel wall housing with galvanized mounting plate plus extra grounding strap 10mm²
made of cold-rolled sheet steel in accordance with EN 10130+A1
Door with foamed polyurethane seal
Body with hardened polyester paint coating light gray RAL7035 matt with UV protection.
Scope of delivery:
Supplied in individual packaging with housing, plate and accessory bag + EXTRA grounding strap
Technical data
Protection class
Single door enclosures IP66 / NEMA 1, 12, 4
Two-door enclosures IP55 / NEMA 1, 12
Impact resistance
Standard door up to IK10 / visible door up to IK09
Ambient temperature range -25 ºC / +40 ºC
Maximum rated operating voltage 1000 V AC / 1500 V DC
