LDPE corrugated cable protection tubing for a (continuous) temperature range up to 70°C, e.g., to protect the supply cable from the control cabinet to the machine

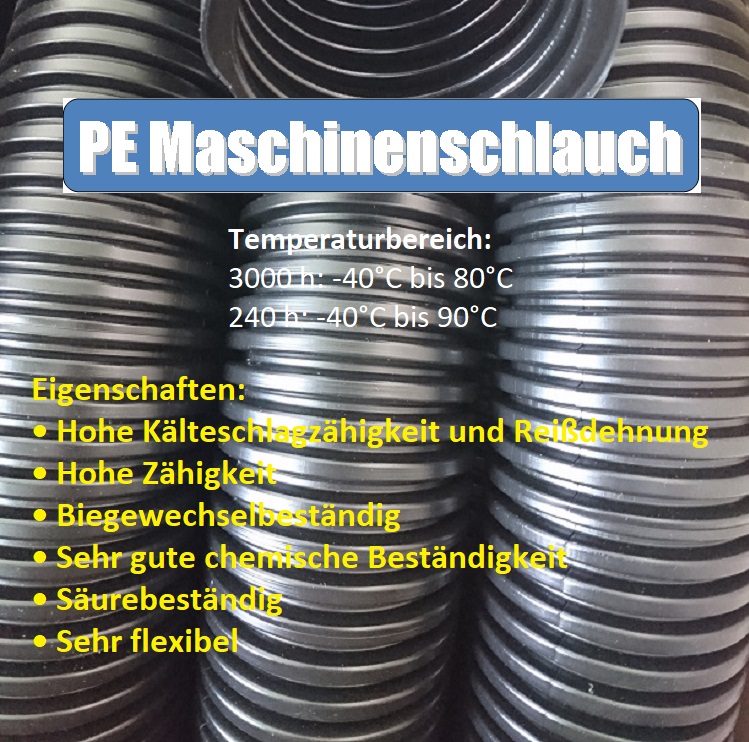

Closed-cell corrugated polyethylene (LDPE) tubing, flexible and pliable, for use as cable protection for loose, individually laid cables & cables
Color: black in stock, gray or light gray on request with lead time or on call order
Material: Polyethylene (LD-PE)
Design: closed / unslotted
Temperature range from -40°C to 70°C/ (3000h) /90°C/(500h)
Product features:
+ Flammability according to FMVSS 302, < 100 mm/min.
+ UL94: HB
+ Temperature range from -40°C to 70°C/(3000h) /90°C/(500h)
+ Very flexible
+ High toughness
+ Durable even with frequent bending cycles
+ Acid-resistant (always depending on concentration)
+ Very good chemical resistance
Applications:
Control cabinet construction
Household appliances
General Electrical engineering
Indoor heating and air conditioning technology
WRM07 50 m PE corrugated pipe NW7.5 (I-Ø diameter 6.5 mm – O-Ø diameter 9.9 mm), black
WRM10 50 m PE corrugated pipe NW10 (I-Ø 9.8 mm - O-Ø 13.1 mm) black
WRM12 50 m PE corrugated pipe NW12 (I-Ø 11.6 mm - O-Ø 15.6 mm) black
WRM13 50 m PE corrugated pipe NW13 (I-Ø 12.3 mm – O-Ø 15.8 mm) black
WRM17 50 m PE corrugated pipe NW17 (I-Ø 16.3 mm - O-Ø 20.8 mm) black
WRM23 50 m PE corrugated pipe NW23 (I-Ø 22.5 mm - O-Ø 28.1 mm) black
WRM26 25 m PE corrugated pipe NW26 (I-Ø 25.5 mm - O-Ø 31 mm) black
WRM29 25 m PE corrugated pipe NW29 (I-Ø 29.0 mm – O-Ø 34.2 mm) black
WRM37 25 m PE corrugated pipe NW37 (I-Ø 35.9 mm – O-Ø 41.6 mm) black
WRM50 25m PE corrugated pipe NW50 (I-Ø 47.1mm - O-Ø 53.3 mm) black
WRM70 10 m PE corrugated pipe NW70 (I-Ø 66.5 mm - O-Ø 79.2 mm) black
WRM95 10 m PE corrugated pipe NW95 (I-Ø 91.0 mm – O-Ø 106.0 mm) black
