manufactured from high-quality, cold-rolled sheet steel with a thickness of up to 2 mm and a hardened surface—powder-coated (epoxy-PE) in RAL 7035.

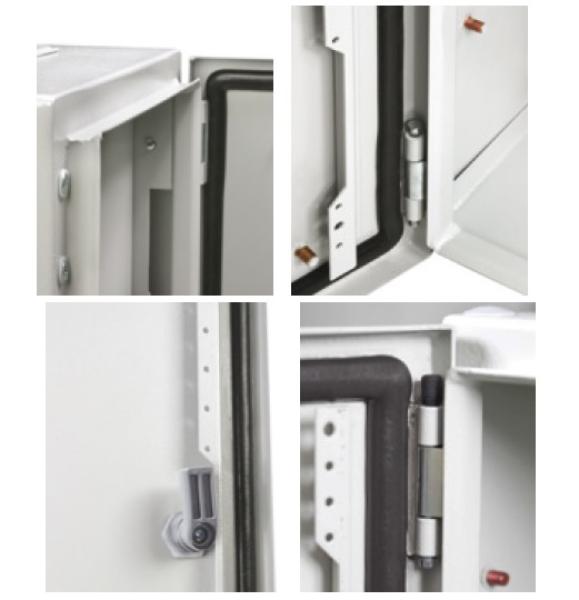

IP66 high-quality control cabinet, 1-door (HBT) from the EU in VDE & UL-certified industrial quality with pre-installed standard door,
galvanized mounting plate, and green/yellow M6/M6 grounding strap, as well as foamed PU gaskets (instead of loose, cheap foam) on the door and flange to ensure the protection class is maintained.
Packaged in eco-friendly & reusable cardboard packaging without unnecessary, costly, and outdated plastic film packaging
Ready-to-use door with a mounted 5mm DIN double-bit lock, easily removable mounting plate, and flange plate(s) with foamed PU gasket for secure installation
The enclosures are individually packaged and come with a mounting plate and accessories.
Locking mechanism: 5 mm DIN DDB (1 lock for heights up to 400 mm, 2 locks for heights up to 800 mm,
3-point bar lock for heights of 1000 mm and above)
Mounting plates: For enclosures up to 700 mm high, they are supplied unmounted; for heights of 800 mm and above, they are mounted inside the enclosure.
Accessories: 4 sealing plugs, grounding labels, keys, cable flange plate with screws, installation instructions.
