IP65 PC AP outdoor distribution box 18TE 1-row uv-stabilized with TS
.jpg "IDE"){kind=logo}

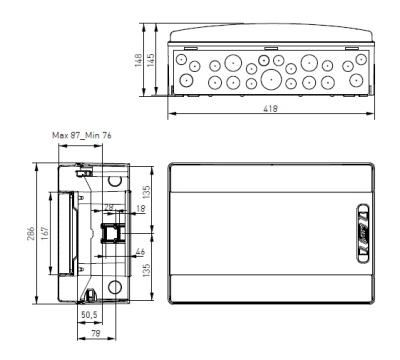

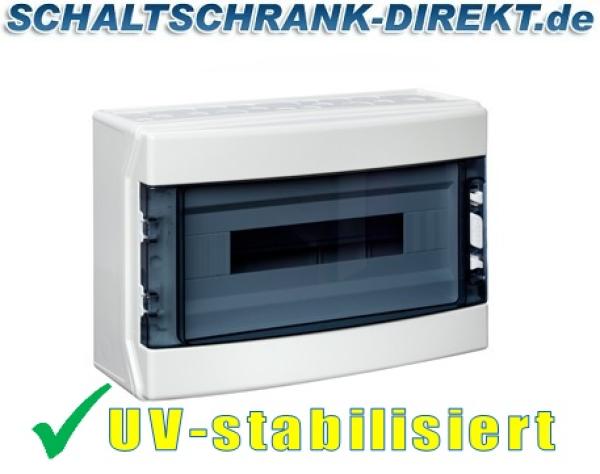

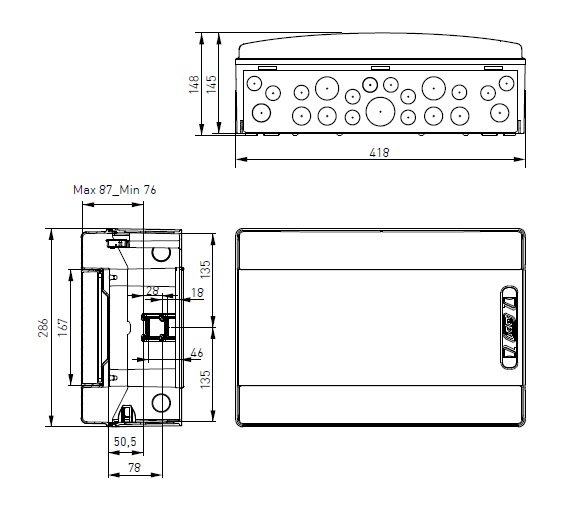

IP65 PC AP outdoor distribution box 18TE 1-row polycarbonate fuse box uv-stabilized with TS HBT 286x418x148mm
is part of the series of IP65 distribution enclosures from the "Ecology" series, which is designed for use in damp rooms and made of halogen-free polycarbonate plastic and with increased UV protection is perfect for long-lasting outdoor use.
Properties
In accordance with Directive 2014/35/EU. Standards: UNE-EN 62208 and IEC 62208:2011
Application areas
Wall-mounted electrical distributors are used in private, commercial and industrial environments where they distribute and protect electricity. Typical locations include construction sites, workshops, garages, gardens and event venues.
Thanks to the IP65 protection rating and robust materials, the IDE Ecology enclosures are ideal for use in environments where protection against moisture and dust is required, such as in the commercial sector in industry or agriculture, catering, hospitals etc,but also in private households in garages, basements, hobby rooms, laundry rooms, garden sheds and also outdoors.
Technical data
Protection class IP65
Impact resistance IK08
Hot-wire resistance ABS 650 ºC / PC 850 ºC
Environmental temperature range -25 ºC / +60 ºC
Materials with maximum temperature 80 ºC
Maximum operating voltage 1000 V AC / 1500 V DC
Double insulation Protection class II
is part of the series of IP65 distribution enclosures from the "Ecology" series, which is designed for use in damp rooms and made of halogen-free polycarbonate plastic and with increased UV protection is perfect for long-lasting outdoor use.
Properties
- IP65 protection: The enclosures are dust-tight and protected against water jets in outdoor or damp areas.
- Materials: Polycarbonate version: Halogen-free polycarbonate plastic, with UV protection for outdoor use.
- Safety: The housings are double insulated (class II).
- Zertifizierung: UV-Schutz nach ISO 4892-2, Methode A.
In accordance with Directive 2014/35/EU. Standards: UNE-EN 62208 and IEC 62208:2011
Application areas
Wall-mounted electrical distributors are used in private, commercial and industrial environments where they distribute and protect electricity. Typical locations include construction sites, workshops, garages, gardens and event venues.
Thanks to the IP65 protection rating and robust materials, the IDE Ecology enclosures are ideal for use in environments where protection against moisture and dust is required, such as in the commercial sector in industry or agriculture, catering, hospitals etc,but also in private households in garages, basements, hobby rooms, laundry rooms, garden sheds and also outdoors.
Technical data
Protection class IP65
Impact resistance IK08
Hot-wire resistance ABS 650 ºC / PC 850 ºC
Environmental temperature range -25 ºC / +60 ºC
Materials with maximum temperature 80 ºC
Maximum operating voltage 1000 V AC / 1500 V DC
Double insulation Protection class II
