IP65 KOMPAKT switch cabinet 2000x800x400 mm HBT 1-door with MP
IP65 KOMPAKT switch cabinet 2000x800x400 mm HBT 1-door with MP
IP65 KOMPAKT switch cabinet 2000x800x400 mm HBT 1-door with MP

IP65 KOMPAKT switch cabinet 2000x800x400 mm HBT 1-door with MP

Product No.:
KS1-20084
Weight:
174 kg per pcs
Only for internal use!

Add to wish list
Ask about product
Description

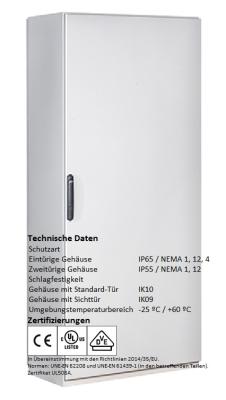

IP65 switch cabinet 2000x800x400 mm HBT 1-door with mounting plate

Sheet steel single cabinet, single-door, compact - series of compact floor-standing switch cabinets made of sheet steel
with one door and with protection class IP65 is available in many different sizes with and without mounting plate.

Choose from a wide range of accessories.
Compact 1-door single floor-standing enclosure with closed sides and galvanized mounting plate
Protection class IP65 - optionally with plinth - version cannot be bayed - additional accessories optional

Certifications

CE Certificado UL508A VBE
In accordance with Directives 2014/35/EU.
Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts).
Certificate UL508A.
Cold-rolled sheet steel in accordance with EN10130+A1.
Coating. Hardened polyester lacquer coating RAL 7035, with UV protection.
Technical data
Protection class
Single-door enclosures IP65 / NEMA 1, 12, 4
Two-door enclosures IP55 / NEMA 1, 12
Impact resistance
Enclosure with standard door IK10
Enclosure with viewing door IK09
Ambient temperature range -25 ºC / +60 ºC
