WR135-07 50m ring corrugated pipe PPmod NW 7.5 black NW7.5 = ID Ø 6.9 mm - ODØ 9.9 mm - closed version
WR135S07 50m ring corrugated conduit PPmod NW 7.5 black slotted NW7.5 = ID Ø 6.9 mm - ODØ 9.9 mm (standard version is 25m)

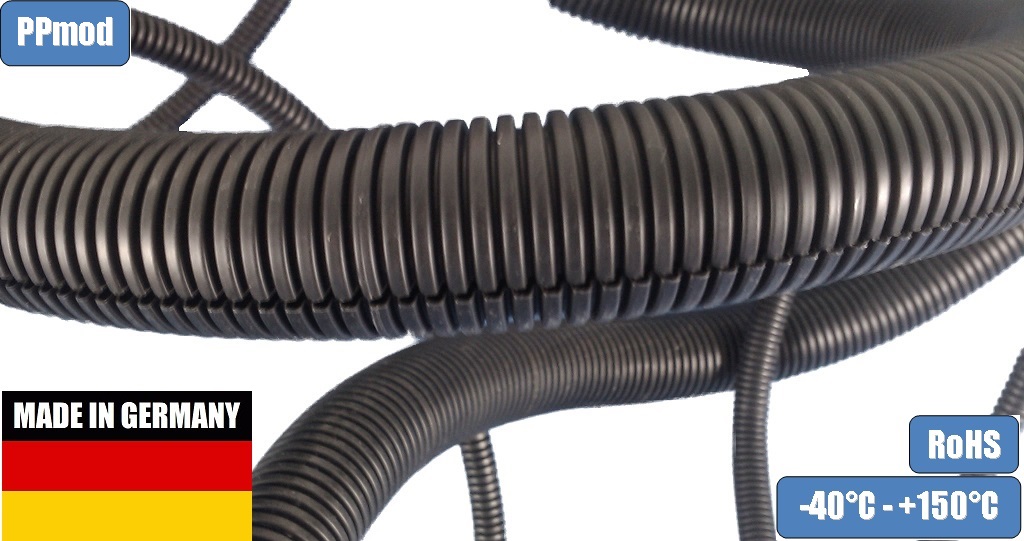

Cable protection corrugated conduit NW 7.5 inner Ø 6.9 mm - outer Ø 9.9 mm made of modified polypropylene with a wide operating temperature range for applications close to the engine, as well as for general applications on the car body or in the vehicle interior due to the high flexural fatigue strength and high flexibility (depending on the NW),
excellently suited for use as cable protection for loosely laid individual cables & cables.
Longitudinal slot of the slotted version remains largely closed even after installation!
This high-quality corrugated conduit is suitable for protecting subsequently laid cables in the vehicle interior and bodywork, e.g. when installing audio, video and hi-fi equipment
Why this cable protection conduit is the right choice:
-
Easy handling: Thanks to the slotted design, you can lay the conduit even retrospectively over existing cables.
Adding or removing individual cables is therefore quick and easy without having to undo the entire installation.
-
Extreme heat resistance: With a temperature resistance of up to 150°C (for 500 hours), our protective conduit offers reliable protection in demanding environments.
-
High flexibility: The modified polypropylene material ensures very good flexibility, so that the conduit adapts perfectly to the shape of your cable harnesses - even in tight or angled areas.
-
Robust material: Made from modified polypropylene, the conduit offers high mechanical strength and protects your cables from abrasion, impact and environmental influences.
Application areas: Ideal for use in the automotive industry, mechanical engineering, electrical engineering and wherever reliable and flexible cable routing is required.

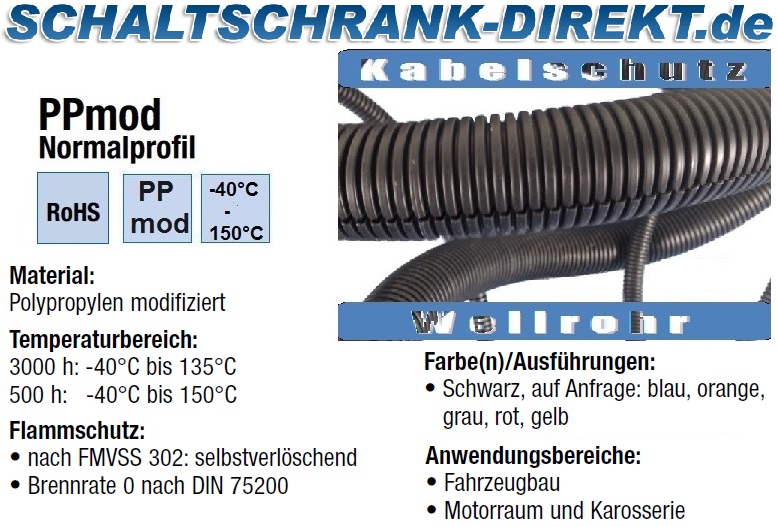

Temperature range: 3000 h: -40°C to 135°C / 500 h: -40°C to 150°C
Fire protection: UL 94: V2 / according to FMVSS 302: self-extinguishing
Product properties: High toughness / resistant to flex fatigue / very high low-temperature impact strength / UV-resistant
Color(s)/finishes: Black - slotted and closed
Application areas: Vehicle interior, bodywork and engine
