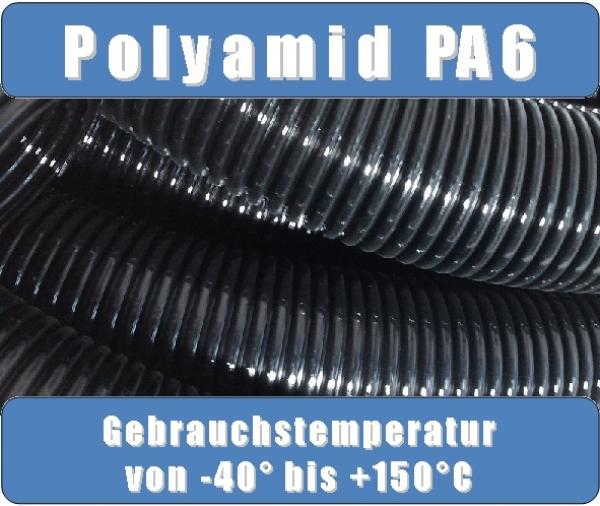

PA6 Corrugated conduit NW7,5
50m PA6 Corrugated conduit NW7,5 flex cable protection black
PA6 Corrugated conduit NW7,5

50m PA6 Corrugated conduit NW7,5 flex cable protection black

Product No.:
WR120-07-VE
Stock:
1 pieces
Weight:
0.7 kg per piece
Only for internal use!

Add to wish list
Ask about product
Description
Halogen-free PA6 corrugated conduit NW7.5 (OD 10mm, ID 6.7mm) made of polyamide PA6 for use as a cable protection conduit for loosely laid individual cables and wires.
This corrugated conduit is suitable for protecting cables in the areas of industrial cable protection, robot technology, machine conduit, switch cabinet construction and many more and can also be used as cable protection for solar or photovoltaic applications.
It should be noted that PA6 is a hygroscopic material, which may affect the function of the corrugated conduit.
As this is not a special corrugated conduit for PV applications, no reliable empirical values are available.
Based on our own experience of applications, we have not noticed any changes even after years of use.

Service temperature from -40°C to 150°C / max. 3000 h 120°C / 500 h 150°C
No declarable substances.

Material properties:
  • Medium to high mechanical load capacity (dynamic + static)
  • Temperature resistance up to 120°C/150°C
  • Good chemical resistance
  • Good stability with corresponding flexibility
  • UV-resistant
  • Halogen-free
  • hygroscopic
